Kyn28-12
XiChi

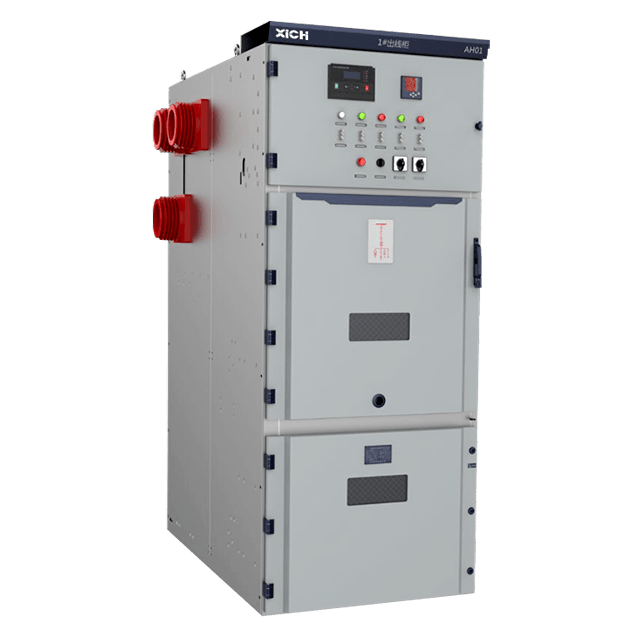

KYN28-12 type indoor metal armored withdrawable switchgear is made up of aluminum-zinc plate bending and combined, fully enclosed structure. In the cabinet, thin steel plates are used to separate four chambers, which are connected by bolts. The upper part is the busbar chamber, the middle part is the handcart chamber, and the lower part is the cable chamber. Instruments and relays are installed in the instrument room in front of the upper part of the cabinet. It has the functions of overhead incoming and outgoing lines and left and right connections.
It is mainly used for power transmission of power plants and small and medium-sized generators, power distribution of industrial and mining enterprises, power reception and power transmission of secondary substations of power systems, large-scale high-voltage motors, etc. It is used for control, protection and detection.
This product complies with GB3906-2006 \"3-35KV AC metal-enclosed switchgear\", GB/T11022 \"Common technical requirements for high-voltage switchgear and control equipment standards\", IEC298 \"AC metal-enclosed switchgear control equipment\" and other standards.
اسم | وحدة | المقياس التقني | |
الفولطية | KV | 3；6；10 | |
Maximum working voltage | KV | 3.6；7.2；12 | |
Rated insulation level | Imin power frequency withstand voltage | KV | 42 |
Lightning impulse withstand voltage | KV | 75 | |
تردد مصنف | Hz | 50 | |
Rated current of main busbar | A | 630 ； 1250 ； 1600 ； 2000 ； 2500 ； 3150 | |
تم تصنيف تيار فرع بربار | A | 630 ； 1250 ； 1600 ； 2000 ； 2500 ； 3150 | |
4S تيار مستقر حراري | كا | 16 ； 20 ； 25 ； 31.5 ； 40 ； 50 | |
تصنيف الذروة الصلبة التيار | كا | 40 ； 50 ； 60 ； 80 ； 100 ； 125 | |
| فئة الحماية | العلبة هي IP4x ، وغرفة العزل وباب قاطع الدائرة IP2X عند فتحه | ||
KYN28-12 type indoor metal armored withdrawable switchgear is made up of aluminum-zinc plate bending and combined, fully enclosed structure. In the cabinet, thin steel plates are used to separate four chambers, which are connected by bolts. The upper part is the busbar chamber, the middle part is the handcart chamber, and the lower part is the cable chamber. Instruments and relays are installed in the instrument room in front of the upper part of the cabinet. It has the functions of overhead incoming and outgoing lines and left and right connections.
It is mainly used for power transmission of power plants and small and medium-sized generators, power distribution of industrial and mining enterprises, power reception and power transmission of secondary substations of power systems, large-scale high-voltage motors, etc. It is used for control, protection and detection.
This product complies with GB3906-2006 \"3-35KV AC metal-enclosed switchgear\", GB/T11022 \"Common technical requirements for high-voltage switchgear and control equipment standards\", IEC298 \"AC metal-enclosed switchgear control equipment\" and other standards.
